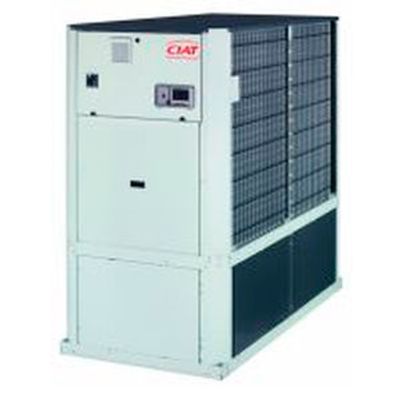

AQUACIAT LD R32 (40 TO 160 KW)
Description :
- R-32 refrigerant
- Compact design and small footprint for outdoor installation
- RAL 7024 – 7035 sheet metal frame
- 1 or 2 refrigerant circuits
- Electronic expansion valves
- New-generation, high-efficiency SCROLL compressors
- High efficiency brazed plates heat exchangers
- High efficiency shell and tubes heat exchangers
- All-aluminium micro-channel high efficiency air-cooled condenser
- Propeller fan with optimized profile composite blades
- AC fixe speed fan motors (base unit)
- Variable speed fans (option)
- Electrical cabinet equipped with remote control transformer, safety switch, numbered wiring
- Connect’Touch controller with numerous auto adaptive functions
- Interface with intuitive multilingual 4.3’’ color touchscreen
- Web server (IP) for access to the interface screen
- Communication with the CMS via the MODBUS/JBUS protocol as standard (LON and Bacnet optional)
Range:
AQUACIAT LD serie
Chiller with or without hydraulic module
2 different sound level versions: Standard – Very Low Noise (LN)
3 hydraulic versions
- Base unit
- Version with hydraulic pump (Option)
- Version with hydraulic pump and water buffer tank (Option)
12 available sizes from 150R to 300R
Operating Range:
Cooling capacity : 40 to 160 kW
Use:
The new generation of high efficiency AQUACIAT air-cooled chillers provides an optimal solution for all cooling applications in offices, healthcare facilities, administration and commercial premises and collective housing.
These units are designed for outdoor installation and do not require protection from adverse weather conditions.
This new range is designed with the ozone-friendly refrigerant R-32 and thereby meets the most demanding environmental protection by reduce the carbon foot print up to -80% and high seasonal energy efficiency (SEER) requirements, +10% versus R410A solution.
