AIR COOLED CHILLERS (COOLING ONLY)

---

• R-32 refrigerant
• Compact design and small footprint for outdoor installation
• RAL 7024 – 7035 sheet metal frame
• 1 or 2 refrigerant circuits
• Electronic expansion valves
• New-generation, high-efficiency SCROLL compressors
• High efficiency brazed plates heat exchangers
• High efficiency shell and tubes heat exchangers
• All-aluminium micro-channel high efficiency air-cooled condenser
• Propeller fan with optimized profile composite blades
• AC fixe speed fan motors (base unit)
• Variable speed fans (option)
• Electrical cabinet equipped with remote control transformer, safety switch, numbered wiring
• Connect’Touch controller with numerous auto adaptive functions
• Interface with intuitive multilingual 4.3’’ color touchscreen
• Web server (IP)  for access to the interface screen
• Communication with the CMS via the MODBUS/JBUS protocol as standard (LON and Bacnet optional)

AQUACIAT LD serie

Chiller with or without hydraulic module

2 different sound level versions: Standard – Very Low Noise (LN)

3 hydraulic versions

• Base unit
• Version with hydraulic pump   (Option)
• Version with hydraulic pump and water buffer tank  (Option)

12 available sizes from 150R to 300R

Cooling capacity : 40 to 160 kW

The new generation of high efficiency  AQUACIAT air-cooled chillers provides an optimal solution for all cooling applications in offices, healthcare facilities, administration and commercial premises and collective housing.

These units are designed for outdoor installation and do not require protection from adverse weather conditions.

This new range is designed with the ozone-friendly refrigerant R-32 and thereby meets the most demanding environmental protection by reduce the carbon foot print up to -80% and high seasonal energy efficiency (SEER) requirements, +10% versus R410A solution.

AQUA CIAT POWER has been developed and optimized with the R32 refrigerant.  With environmentally friendly characteristics Zero Ozone Effect (ODP = 0) and Low Global Warming Potential (GWP = 675). Technological choices of refrigerant fluid and components have reduced the environmental impact (Tonne Equivalent CO2) by almost 80% compared to the previous generation.

• R-32 refrigerant
• Compact design and small footprint for outdoor installation
• RAL 7024 – 7035 sheet metal frame
• 2 refrigerant circuits
• Electronic expansion valves
• New-generation, high-efficiency SCROLL compressors
• High efficiency brazed plates heat exchangers
• High efficiency shell and tubes heat exchangers
• All-aluminium micro-channel high efficiency air-cooled condenser
• Propeller fan with optimized profile composite blades
• AC fixed speed fan motors (base unit)
• Variable speed fans  Version High seasonal Efficiency
• Electrical cabinet equipped with remote control transformer, safety switch, numbered wiring
• Control module with Connect Touch microprocessor and a large range of auto adaptive functions
• Interface with intuitive multilingual 3’’ color touchscreen
• Web server (IP)  for access to the interface screen
• Communication with the CMS via the MODBUS/JBUS protocol as standard (LON and Bacnet optional)

AQUACIATPOWER LD serie

Chiller with or without hydraulic module

3 energy versions

• Version Standard efficiency
• Version High Nominal Efficiency (Option)
• Version High seasonal Efficiency (Option)

3 different sound level versions: Standard – Low Noise (LN) – Xtra Low Noise (XLN)

3 hydraulic versions

• Base unit
• Version with hydraulic pump  (Option)
• Version with hydraulic pump and water buffer tank (Option)

19 available sizes from 602 to 3500

Cooling capacity : 170 to 950 kW

The new generation of high efficiency  AQUACIAT POWER air-cooled chillers provides an optimal solution for all cooling applications in offices, healthcare facilities, administration and commercial premises and collective housing.

These units are designed for outdoor installation and do not require protection from adverse weather conditions.

This new range is designed with the ozone-friendly refrigerant R-32 and thereby meets the most demanding environmental protection by reducing the carbon foot print up to -80% and high seasonal energy efficiency (SEER) requirements, +10% versus R410A solution.

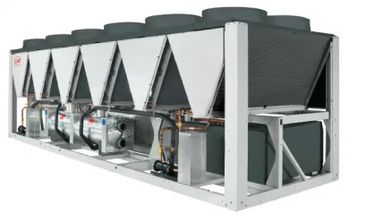

POWERCIAT units are packaged machines supplied as standard with the following components:

– Twin-screw semi-hermetic compressors Flooded shell and tube type chilled-water evaporator Air-cooled exchanger, all-aluminium micro-channel coil with axial fan motor assembly

– Electrical power and remote control cabinet:

• 400 V-3ph-50 Hz (+/-10%) mains power supply + earth
• transformer fitted as standard on the machine for supplying the remote control circuit with 24V

– Connect Touch electronic control module

– Casing for outdoor installation

The entire POWERCIAT range complies with the following EC directives and standards:

• Machinery directive 2006/42/EC.
• Electromagnetic compatibility directive 2014/30/EU.
• EMC immunity and emissions EN 61800-3 ‘C3′.
• Low voltage directive 2014/35/EU.
• RoHS 2011/65/EU.
• Pressure equipment directive (PED) 2014/68/EU
• Machinery directive EN 60-204 – 1 Refrigeration systems and heat pumps EN 378-2
• Regulation (EU) no. 2016/2281 implementing directive 2009/125/EC with regard to Ecodesign requirements

POWERCIAT series LX HE

Cooling only version High seasonal energy efficiency.

The product is optimised for part load applications and fulfils the provisions of the new Ecodesign regulation governing comfort and process applications. In this case, the machine is equipped as standard with variable-speed fans with AC motor and external speed regulator, allowing for optimisation of the part load efficiency throughout the year.

– HE High Seasonal Efficiency

– HE LN option : High Seasonal Efficiency Low Noise

– HE XLN option : High Seasonal Efficiency Xtra Low Noise

– HE SLN option : High Seasonal Efficiency Super Low Noise

POWERCIAT series LX XE

Premium cooling only version.

The product is optimised for part load applications and fulfils the provisions of the new Ecodesign regulation governing comfort and process applications, while also facilitating a return on investment. In this case, the machine is equipped with EC-type variable-speed fans as standard, enabling the optimum part load efficiency to be achieved throughout the year

– XE : Premium

– XE : LN option Premium Low Noise

– XE : XLN option Premium Xtra Low Noise

Cooling capacity : 273 to 1493 kW

The latest generation of POWERCIAT high-efficiency air-to-water water chillers are the perfect solution for all cooling applications in the Offices, Healthcare, Industry, Administration, Shopping Centres and Collective Housing markets.

These units are designed for outdoor installation and require no special protection against adverse weather conditions.

POWERCIAT is optimised to use ozone-friendly HFC R134a refrigerant.

This range guarantees compliance with the most demanding requirements for increased seasonal energy efficiency (SEER and SEPR) and CO2 reduction to comply with the various applicable European directives and regulations.

• Eurovent-certified class A EER
• SEER up to 4.5, SEPR up to 6.3
• Operating range from -20 °C to +55 °C
• Compact and silent
• High-efficiency flooded shell and tube evaporator
• Aluminium micro-channel condenser
• Hydraulic module & heat recovery

AQUACIAT units are packaged machines supplied as standard with the following components:

– Hermetic SCROLL compressors

– Brazed-plate condenser or evaporator water type heat exchanger

– Air-cooled exchanger with axial fan motor assembly

• all-aluminium micro-channel coil, cooling only version
• copper tube coil with aluminium fins, reversible heat pump version

– Electrical power and remote control cabinet:

• 400V-3ph-50Hz (+/-10%) general power supply + earth
• transformer fitted as standard on the machine for supplying the remote control circuit with 24V

– Connect Touch electronic control module

– Casing for outdoor installation

AQUACIAT LD series

Water chiller without hydraulic system, hydraulic version with or without buffer tank available as an option.

Available in 11 models sized from 150 to 600

Cooling capacity : 40 to 160 kW

Medium-capacity air-cooled chiller for heating and cooling of residential buildings, businesses, industrial facilities and healthcare facilities. May be connected to emitters such as underfloor heating and cooling systems, terminal units (such as fan coil units and water cassettes) or air handling units. Designed as standard for outdoor installation without any special protection from adverse weather conditions.

This new range is optimised to run with the ozone-friendly HFC refrigerant R410A and thereby meet the most demanding environmental protection and high seasonal energy efficiency (ESEER) requirements.

• R-410A refrigerant
• Compact, space-efficient unit
• Fully encased in a housing constructed of coated metal panels that can be detached for outdoor installation
• RAL 7024/7035 metal housing
• One or two independent refrigerant circuits
• Electronic expansion valve(s)
• One to four new-generation, high-efficiency scroll compressors
• 19mm insulated water-cooled brazed-plate heat exchanger
• All-aluminium micro-channel high efficiency air-cooled condenser
• 1 – 2 axial fans with composite blades offering an optimised profile
• Electrical cabinet equipped with remote control transformer, safety switch, numbered wiring
• Control module with Connect Touch microprocessor and a large range of auto adaptive functions
• Interface with intuitive multilingual 4’’3 colour touchscreen.
• Web server (IP) for access to the interface screen
• Communication with the CMS via the MODBUS/JBUS protocol as standard (LON and Bacnet optional)

AQUACIAT Free Cooling modules are delivered with the following components as standard:

– Exchanger coils with axial fan motor assemblies.

– Hydraulic circuit with 3-way flow distribution valve, coil shut-off valve, drain and bleed valves, etc.

– Command and control electrics box.

– Aeroconnect electronic control module.

9 models available

Cooling capacity from 185 to 485 kW

The FREE COOLING system integrated AQUACIATPOWER range allows significant energy savings to be made by tapping into the kilo calories contained in the outdoor air as soon as the climatic conditions allow rather than using a refrigerating circuit.

The energy efficiency of the system can thus reach an EER of 60.

• Air/water exchange coil placed in front of the water chiller
• Simultaneous operation with the water chiller
• Piloting of both the free cooling module and the water chiller via AeroCONNECT optimising the operation of the overall installation and the recovery of calories

The AQUACIATPOWER units are packaged machines supplied as standard with the following components:

– Hermetic SCROLL compressors

– Chilled-water evaporator with brazed plates

– Air-cooled exchanger, all-aluminium micro-channel coil with axial fan motor assembly

– Electrical power and remote control cabinet:

– Connect Touch electronic control module

– Casing for outdoor installation

AQUACIATPOWER LD series

Water chiller without hydraulic system, hydraulic version with or without buffer tank available as an option 2 versions for different energy requirements Standard energy version (ST) High Energy Efficiency version (HE)

3 different sound level versions: Standard – Low Noise (LN) – Extra Low Noise (XLN)

Available in 12 models sized from 602 to 2000

Range of use : Cooling capacity : 170 to 740 kW

The new generation of AQUACIATPOWER air-cooled high efficiency water chillers provides an optimal solution for all cooling applications in offices, healthcare facilities, industries, administration and commercial premises and collective housing.

These units are designed to be installed outdoors and do not require protection from adverse weather conditions.

This new range is optimised to run with the ozone-friendly HFC refrigerant R410A and thereby meet the most demanding environmental protection and high seasonal energy efficiency (ESEER) requirements.

• R-410A refrigerant
• Compact design and small footprint for outdoor installation
• RAL 7024/7035 metal housing
• Two independent refrigerant circuits
• Electronic expansion valves
• New-generation, high-efficiency SCROLL compressors
• All-aluminium micro-channel high efficiency air-cooled condenser
• Propeller fan with optimised profile composite blades
• EC type motor with electronic pole switching and rotors with permanent magnets (standard on the HE series)
• Electrical cabinet equipped with remote control transformer, safety switch, numbered wiring
• Control module with Connect Touch microprocessor and a large range of auto adaptive functions
• Interface with intuitive multilingual 4’’3 colour touchscreen.
• Web server (IP) for access to the interface screen
• Communication with the CMS via the MODBUS/JBUS protocol as standard (LON and Bacnet optional)
